Control Panel Details

nXt Intelligent Controllers

Features

The Bianco nXt range of intelligent controllers are:

Suitable for installation in various industrial and domestic applications
Function Switches for drainage, pressure boosting and transfer applications
User Friendly features for controlling and protecting pumps and reporting faults with live data retention
RS485 communication interface for easy integration into Building Management Systems
Ingress protection rating IP54 with intelligent dynamic LCD display for pump running information that is suitable for installation both indoors and outdoors
Automatic Calibration of iCON intelligent controller which sets pump thermal overload by means of button push

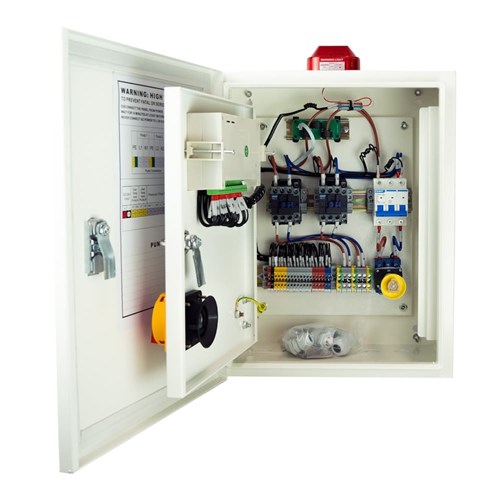

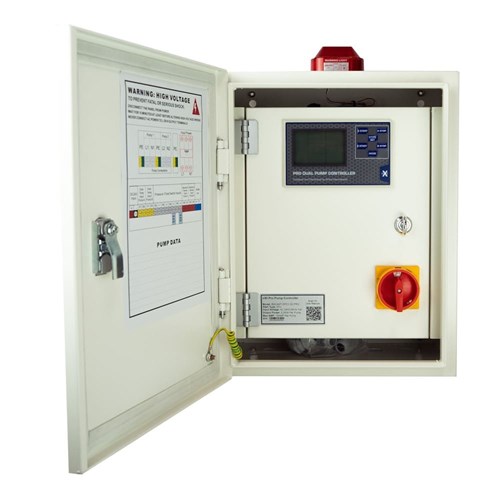

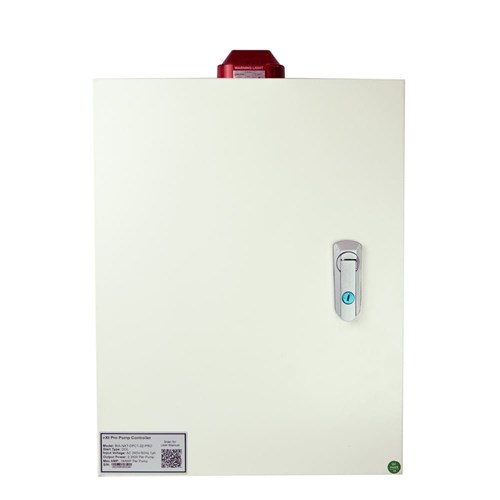

Dual enclosure with a lockable external door for added security
Turnkey Isolator on inner door
Audio/Visual Alarm
MCB inside housing
Terminal wiring block
IOT Connection
Galvanised powder coated

Bianco iCON Dual Door Dual Pump Control Panel 240V 0.37 – 2.2kW

Dimensions: 45cm (H) x 35cm (W) x 22.5cm (D)

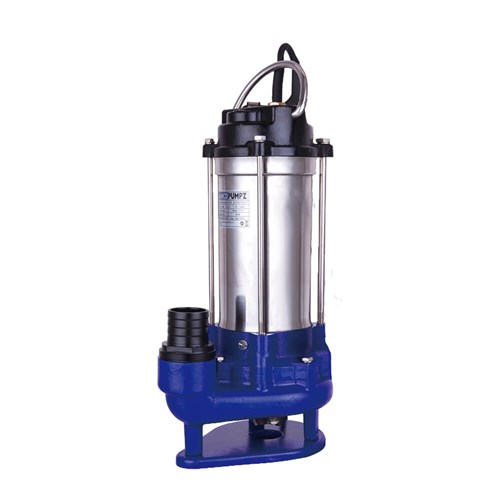

Pump Details & Features

Cast iron grinder and cutter

2 x The Bianco industrial grade grinder pump is built for wastewater applications containing soft solids and is designed to grind various materials for pumping to sewer mains or treatment facilities.

Features

Can lift water up to 20m and pump water up to 341 lpm
Built with a high grade, cutting device, stainless steel shaft stainless (7CR17),
Replaceable grinding device
Manufactured from high chromium hardened stainless steel
Dual ceramic/graphite mechanical seal
H07RNF neoprene chemical and oil resistant power cable
Applications

Grey & Black Water Pumping
Sump Emptying
Septic effluent and sewage disposal
Pumping of wastewater with soft solids in suspension

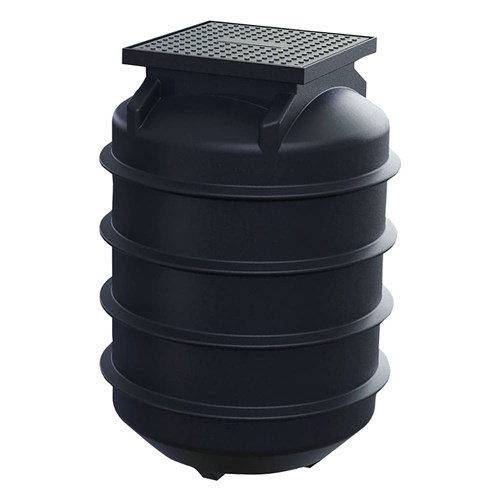

HT1050 HOLDING TANK DETAIL

Tank constructed from Polyethylene.
The Vessel is to be installed in a location that will not cause a nuisance,
obstruct fire access, cannot be vandalized or be damaged by vehicles.
1050ltrs

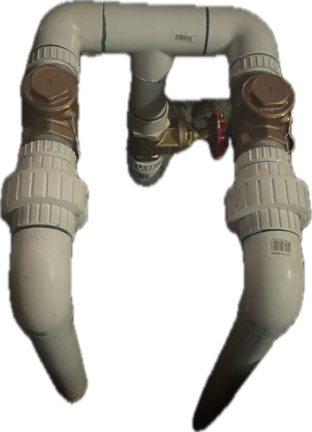

plumbed with all valves and pipework needed for pump station.
