UP-MULTI1100PC – Universal Pumps Electronic Pressure System – 45m Max Head 90L/min Max Flow
$1,010.00
UP-MULTI1100PC – Universal Pumps Electronic Pressure System – 45m Max Head 90L/min Max Flow
Order Code: 804910
Product Code
UP MULTI1100PC
Description
UP-MULTI1100PC – Universal Pumps Electronic Pressure System – 45m Max Head 90L/min Max Flow

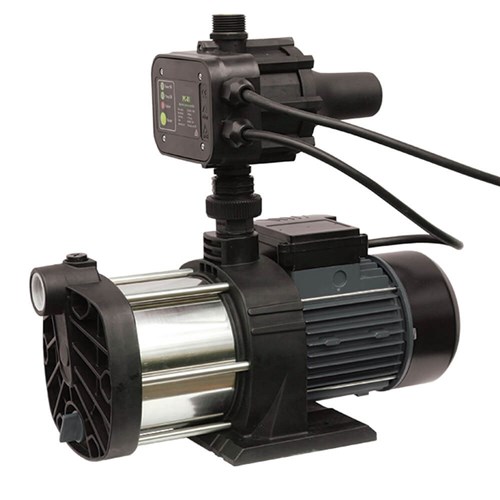

The UP-MULTI1100 is a self-priming jet pump surface mounted pressure system with auto-restart electronic pump control for automatic operation.
The pump is characterised by:
Fully electronic pump controller for automatic pump starting, stopping and resart after power loss or water loss.
Dry run protection to prevent pump damage.
2.2 bar cut in pressure.
Corrosion resistant pump components to ensure durability.
240V single phase TEFC motor with built-in auto reset thermal overload to prevent the pump from overheating.
Applications:
Garden and Rainwater use.
Multi story homes and high-pressure applications
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
UP-MULTI1100PC - Universal Pumps Electronic Pressure System - 45m Max Head 90L/min Max Flow
UP-MULTI1100PC - Universal Pumps Electronic Pressure System - 45m Max Head 90L/min Max Flow
Features
Liquid:
- Liquid Type: Clean Water
- Clean water temperature range: 2 – 35oC
Materials:
- Pump body: 304 Stainless Steel
- Impeller, Jet/Venturi, Diffuser: Noryl Glass Reinforced
- Mechanical seal: Carbon/Ceramic/Nitrile
- O rings: Nitrile
- Power Cable: 1.2m Cable H05 3G1.0
Installation:
- Maximum ambient temperature: 40oC
- Maximum operating pressure: 6 bar
- Pipe connections suction/discharge: 1” BSPF / 1” BSPM
- Dimensions: L495mm x D305mm x H480mm
Electrical data:
- Rated voltage: 220 (-6%) - 240V (+6%)
- Mains frequency: 50 Hz
- P2 (shaft power) (kW): 1.1
- Current: 8A
- Capacitor: 16 uF
- Motor duty: Continuous
- Motor type: Asynchronous, TEFC
- Motor protection: In-built thermal overload
- Ingress protection: IPX4
- Insulation class: F
Hydraulic Data:
- Max Head: 45 m
- Max Flow: 90 l/min
- Number taps: 8
- Weight: 14kg
Downloads
Additional information
| Weight | 13.80 kg |
|---|---|
| Brand | Universal Pumps |
| Max Head (m) | 45 m |
| Max Flow (L/min) | 90 |
| Taps | 8 |
