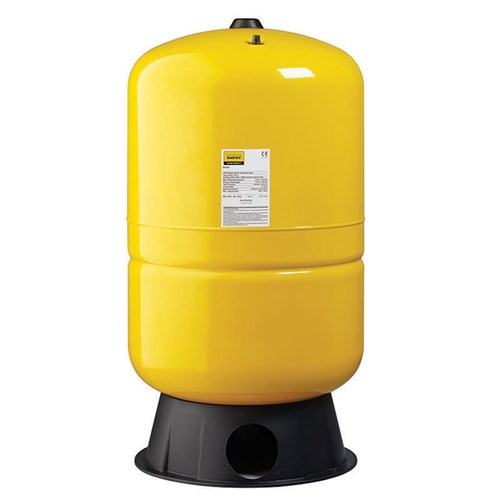

SupercellP 80litre 1600 kPa

Description

Supercell Steel Tanks with Captive Diaphragms

• Supercell 80 litre free standing steel shell tanks include the latest internal designs for long tank life - maximum pressure of 1600kPa
• P model Supercells have FDA approved captive diaphragms with virgin polypropylene wetted area liners and patented stainless steel water inlets
• The exterior is finished in high quality polyurethane over an epoxy undercoat for years of reliable life
• HP models for higher pressure applications
• Compliance with the strict requirements of ISO 9001, NSF Standard 61, CE/PED, WRAS, ACS, Watermark and Gost quality standards. This ensure consistent product quality and assurance of acceptance by plumbing regulators.

Technical Specifications

• Capacity: 80 litres total volume.
• Maximum Operating Pressure: 1,600 kPa (16 Bar or 232 psi).
• Nominal Draw-off: Approximately 28.2 litres.
• Inlet Connection: 1-inch (25mm) BSP female thread.
• Operating Temperature: Suitable for water from 1°C up to 90°C.
• Tank Air Pre-charge: Factory-set at 400 kPa (58 psi).
• Dimensions: Approximately 388mm in diameter and 790mm in height.
• Shipping Weight: 16.7 kg.

Key Features

• Captive Diaphragm Design: The heavy-duty butyl rubber diaphragm is held firmly in a central position, which allows for a thicker, more durable material than standard bladder tanks, leading to longer life.
• Potable Water Safe: Features an FDA-approved diaphragm and a virgin polypropylene liner, ensuring the water remains non-toxic and safe for drinking applications.
• Corrosion and UV Resistance: The deep-drawn steel shell is finished with an epoxy primer and a high-quality two-part polyurethane enamel to protect against rust and UV damage for a long service life.
• Patented Water Connection: A stainless steel water connection ensures a leak-free and maintenance-free seal between the water and air chambers.
