Supercell 60litre 1000 kPa

Name: Supercell 60litre 1000 kPa - Total Alcott Pumps & Servicing60-litre free-standing steel pressure tank rated for a maximum operating pressure of 1,000 kPa (145 psi).
Brand: Davey
SKU: 24060P
Price: 400.00 AUD
Availability: InStock

$400.00

SupercellP 60litre 1000 kPa

Product Code: 24060P

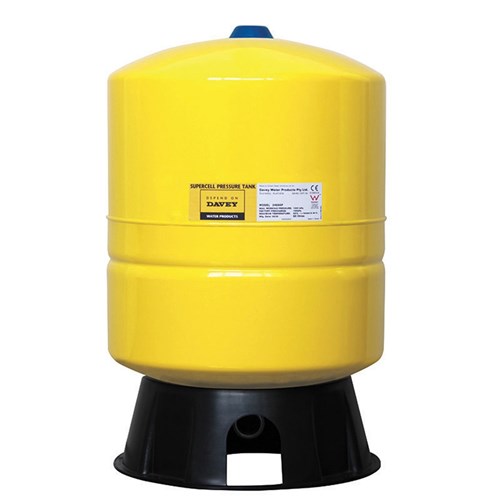

The Davey Supercell 60P (model 24060P) is a 60-litre free-standing steel pressure tank rated for a maximum operating pressure of 1,000 kPa (145 psi). This model is designed to reduce pump cycling in larger household or farm water systems, providing a nominal draw-off of approximately 21.2 litres.



Shipping – We ship from Sydney to NSW metro and regional

+

Return Policy – Returns and exchanges may incur a shipping fee



Secure Payment – We use PayPal for secure online payments

Description
Additional information
Reviews (0)

SupercellP 60litre 1000 kPa

Technical Specifications

Capacity: 60 litres total volume.
Draw-off Capability: Provides 21.2 litres of water before the pump needs to restart.
Pressure Rating: 1,000 kPa maximum operating pressure.
Inlet Connection: 1-inch (25mm) BSP female thread.
Temperature Range: Safe for water from 1°C up to 90°C.
Dimensions: Approximately 388mm in diameter and 626mm in height.
Shipping Weight: 12.5 kg.
Pre-charge Pressure: Factory set at 190 kPa (28 psi).

Key Performance Features

Captive Diaphragm Design: The butyl rubber diaphragm is held in a fixed central position to limit movement, which allows for a thicker, more durable material than standard bladder tanks.
Corrosion Protection: The steel shell is finished with a two-part polyurethane enamel over an epoxy primer to resist UV light and rusting.
Internal Lining: A virgin polypropylene liner separates water from the steel shell, ensuring the tank remains
maintenance-free and safe for potable (drinking) water.
Warranty: Covered by a 5-year replacement warranty.

Data Sheet
