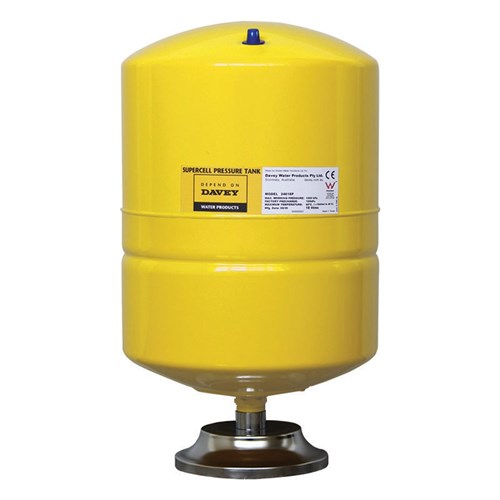

SupercellP 18litre 1000 kPa

Description

Supercell Steel Tanks with Captive Diaphragms

• Supercell 18 litre top mounted steel shell tanks include the latest internal designs for long tank life - maximum pressure of 1000kPa
• P model Supercells have FDA approved captive diaphragms with virgin polypropylene wetted area liners and patented stainless steel water inlets
• The exterior is finished in high quality polyurethane over an epoxy undercoat for years of reliable life
• Compliance with the strict requirements of ISO 9001, NSF Standard 61, CE/PED, WRAS, ACS, Watermark and Gost quality standards. This ensure consistent product quality and assurance of acceptance by plumbing regulators.

Technical Specifications

• Capacity: 18 litres total volume.
• Nominal Draw-off: Approximately 6.7 litres.
• Pressure Rating: Maximum operating pressure of 1,000 kPa.
• Inlet Connection: 1-inch (25mm) BSP male thread.
• Temperature Limits: Suitable for water temperatures between 1°C and 90°C.
• Dimensions: Approximately 279mm in diameter and 368mm in height, with a shipping weight of roughly 4.3kg.
• Warranty: Typically comes with a 5-year replacement warranty.

Key Features

• Experts and retailers like ASC Water Tanks highlight several performance benefits:
• Captive Diaphragm: Held firmly in a central position to restrict movement, allowing for a thicker, more durable
• reinforced butyl diaphragm compared to standard bladder tanks.
• Potable Water Safe: Features an FDA-approved butyl rubber diaphragm and a virgin polypropylene liner to ensure stored water remains clean and non-toxic.
• Corrosion Resistance: The deep-drawn steel shell is finished with an epoxy primer and a high-quality two-part polyurethane enamel to protect against rust and UV damage.
• Stainless Steel Inlet: A patented stainless steel water connection provides a leak-free seal even in less-than-ideal water conditions.

Data Sheet
