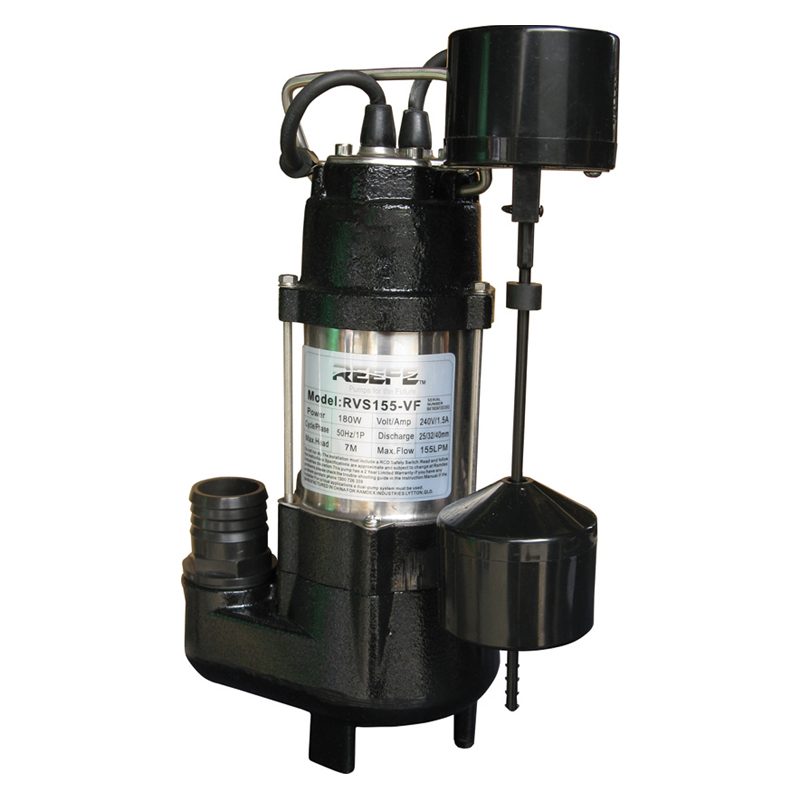

Reefe RVS155VF Vortex Sump Pump with Vertical Float Switch 155L/min 7m head

Name: Reefe RVS155VF Vortex Sump Pump with Vertical Float Switch 155L/min 7m head - Total Alcott Pumps & Servicing
Brand: Reefe
SKU: 8416
Price: 371.95 AUD
Availability: InStock

$371.95

Applications:

Wastewater treatment system
Confined spaces
Small or shallow pits / sumps
Narrow irrigation chambers



Shipping – We ship from Sydney to NSW metro and regional

+

Return Policy – Returns and exchanges may incur a shipping fee



Secure Payment – We use PayPal for secure online payments

Description
Additional information
Reviews (0)

Features & Benefits:

Low power consumption
Thermal overload protection
Soft solids handling 15mm (155), 25mm(200),30mm(300)
High performance
H05RNF 10m power cable
Includes hosetail
Maximum liquid temperature 40°C
Adjustable “stop” vertical float switch
Electrical Safety Approval to AS/NZS 60335.2.41

Construction:

Stainless steel motor housing & shaft
Cast iron vortex impeller (RVS155VF – technopolymer impeller)
Dual mechanical seal in oil chamber
Cast iron base and outlet
Minimum pit dimension 300mm sq (RVS155VF, RVS200VF, RVS250VF)
Ingress Protection IP68
Insulation Class B – RVS155VF
Insulation Class A – RVS200VF, RVS250VF & RVS300VF

Downloads:

Brochure

Instruction Manual

Additional information

Weight	8.5 kg
Dimensions	220 × 190 × 350 cm

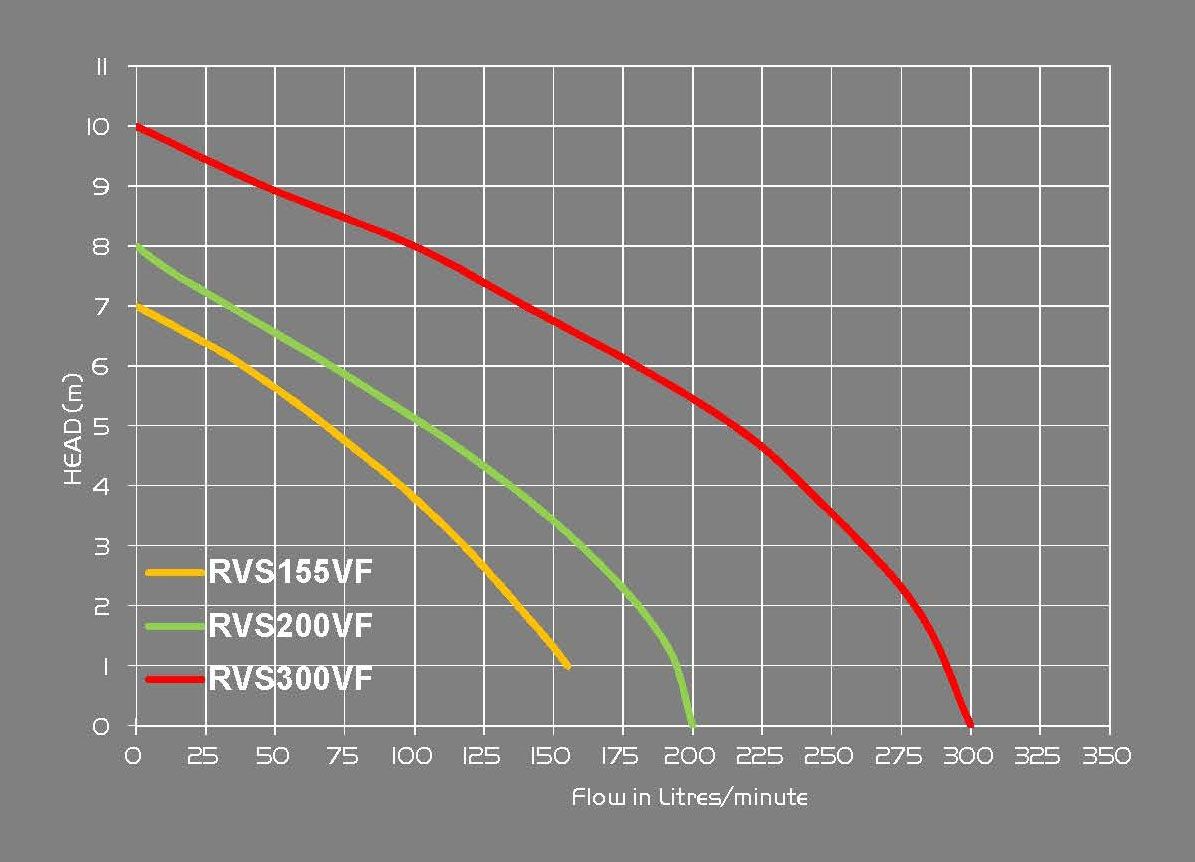

MODEL	RVS155VF
AMPS	1.5
P2	0.18
RATED FLOW	90 L/min
RATED HEAD	4m
MAX FLOW	155 L/min
MAX HEAD	7m
SOFT SOLIDS	15mm
OUTLET	32mm
CABLE LENGTH	10m
WEIGHT	8.5kg
SIZE LxWxH (mm)	220 x 190 x 350
