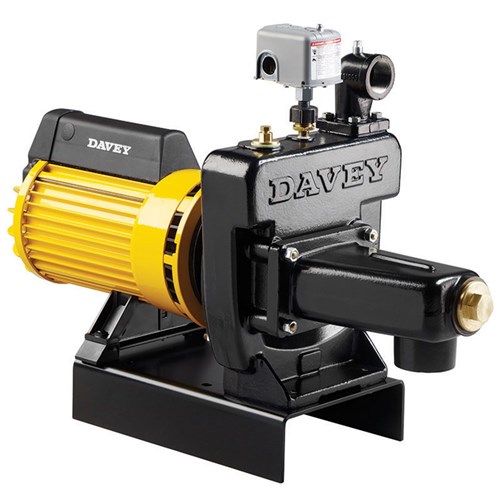

Prime Jet 240 Pump + 682 Shallow Well injector - 2.5kW 240/480V 50Hz 1ph

Description

• Prime Jet 240 - Shallow Well Pump and Injector
• Single stage, single phase, convertible jet assisted centrifugal pump and 22682 injector with cast iron casing and cast bronze impeller.
• Tank & hose kits etc. must be ordered in addition to kits if being used as an automatic pressure system

The Davey Prime Jet 240 pump system (Model KPJ240682) paired with the 682 shallow well injector is a heavy-duty solution for drawing water from shallow depths (up to 7.5 metres). This specific 2.5kW single-phase configuration is often selected for applications requiring higher flow rates than the standard 680 or 681 kits.

System Specifications

• Performance: The shallow well version with this kit is suitable for depths up to 7.5 metres and can achieve flow rates up to 234 lpm.
• Motor: Features a 2.5kW (P2) output 2-pole motor (2850 rpm) with an IP56 rating for protection against dust and water.
• Electrical: Standard operation is 240V 50Hz, but it can be re-connected for a nominal 480V 50Hz single-phase supply if required.
• Construction: Includes a robust cast iron casing and a cast bronze impeller for extended service life.

Downloads

Data Sheet
