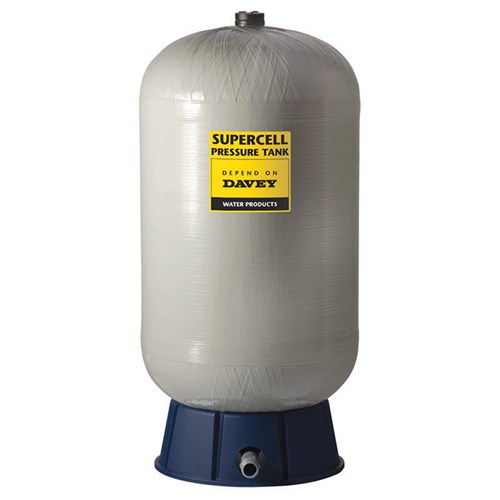

Pressure Tank Supercell 130F

The Davey Supercell 130F is a 130-litre composite pressure tank (SKU: 24130F) designed for use in household, farm, or industrial water pressure systems, offering superior corrosion resistance and pump protection. Its composite construction makes it ideal for aggressive water conditions and humid environments where steel tanks might fail.

Key Features and Benefits

• Corrosion-Proof Materials: The unique design features a smooth, wear-resistant polypropylene inner shell and a strong, durable fibreglass outer shell, ensuring a long service life, especially in coastal or high-humidity environments.
• Long-Life Diaphragm: Utilizes a patented CAD2 captive diaphragm that is held firmly in a central position, allowing for the use of a thicker, reinforced material for extended life compared to traditional bladder tanks.
• Safe for Potable Water: Both the heavy-duty butyl diaphragm and the virgin polypropylene liner are FDA-approved and meet major worldwide requirements for potable water, ensuring the water stored is safe and non-toxic.
• Protects the Pump: The tank stores water under pressure, which eliminates frequent pump start-stop cycles (on/off cycling), thus saving energy and significantly extending the pump's operational life.
• Guaranteed Reliability: Every tank is individually tested for reliable operation and compliance with strict quality standards, including ISO 9001, NSF Standard 61, CE/PED, WRAS, and Gost.

Specifications

• Attribute Detail
• Capacity 130 Litres
• Max. Operating Pressure 860 kPa (8.6 Bar or 125 psi)
• Tank Shell Material Composite (fibreglass outer, polypropylene inner shell)
• Diaphragm Material Heavy-duty butyl rubber (FDA approved)
• Wetted Internals All non-metal, including the inlet
• Max Water Temperature 50°C
• Mounting Free standing
• Warranty 60 Months (5 Years)

Datasheet
