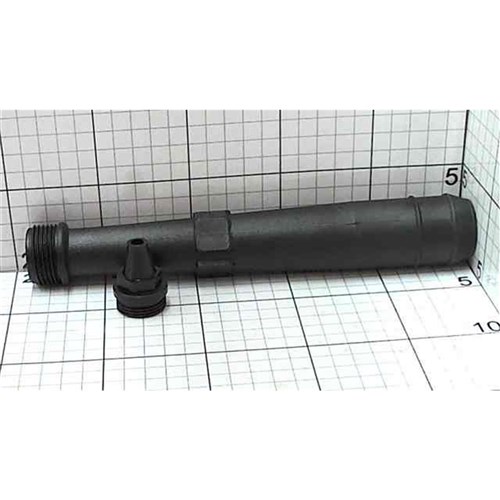

Injector Jet Kit 469 suit 95D

Product Description

The Davey 469 Injector Kit (Product Code: 22469) is a critical component that allows the Davey 95D pump to draw water from deep bores or wells. Unlike the previously discussed shallow well kits, this deep well injector is submerged in the water source at the end of the suction piping.

• Application: Optimized for depths down to 18 metres (60 feet) in minimum 4-inch (100mm) diameter bores.
• Performance: According to technical data from Pumping.com.au, this configuration provides approximately 85 litres per minute at a discharge pressure of 140 kPa (20 psi) when the water is at a 6-metre depth.
• Kit Contents: Typically includes a bronze injector body, foot valve assembly, adaptor flange for the pump, gaskets, and stainless steel hose clips.
• Pipe Requirements: Requires two separate pipes (suction and pressure/drive lines). Standard installations typically use 1½" and 1¼" I.D. imperial polypipe.

Performance Data (at 280 kPa / 40 psi discharge)
The flow rate decreases as the depth to water increases:

• Industrial Pumping
• Industrial Pumping
• 6 metres depth: 57 litres per minute.
• 12 metres depth: 40 litres per minute.
• 18 metres depth: 25 litres per minute.
