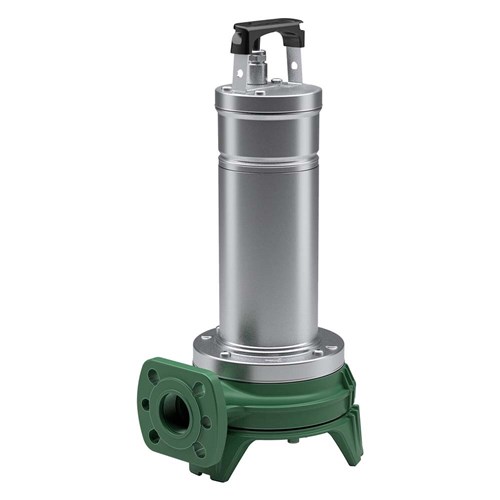

DAB FEKA VS GRINDER 1000M-NA - PUMP SUBMERSIBLE 234L/M 25M 1KW 240V

Submersible pump for draining wastewater in commercial building service. The pump is certified to the European Union standard EN 12050-1 which applies to
lifting systems for waste water containing fecal material in buildings and construction sites. Thanks to the shredder, the pump is suitable for systems with small
diameter pipes or those requiring high pressures.

Pump suitable for fixed installations with coupling device or mobile installation if placed directly on the bottom
of the tank. Construction according to CEI 2-3 CEI 61-69 (EN 60335-2-41) standards. Single-phase versions is available in automatic version with integrated
float switch or in the manual version without float switch.

CONSTRUCTION FEATURES OF THE PUMP

The motor shaft is in AISI 316 stainless steel. Double mechanical seal with interposed oil chamber (non-toxic oil) in carbon/alumina on the motor side and silicon
carbide/silicon carbide on the pump side. Seal holder cover, motor case, cap and handle are made in stainless steel. The pump body and the base are in cast
iron. The shredding system is in AISI 630 stainless steel. The handle is covered in insulating rubber.

CONSTRUCTION FEATURES OF THE MOTOR

The motor is asynchronous, it is watertight, cooled by the pumped liquid. The rotor is mounted on greased-for-life ball bearings, oversized and selected to ensure
low noise and durability. Standard thermo-amperometric protection for the single-phase version with capacitor inserted as standard, the three-phase version
has a thermal protection which can be connected to a control panel.
