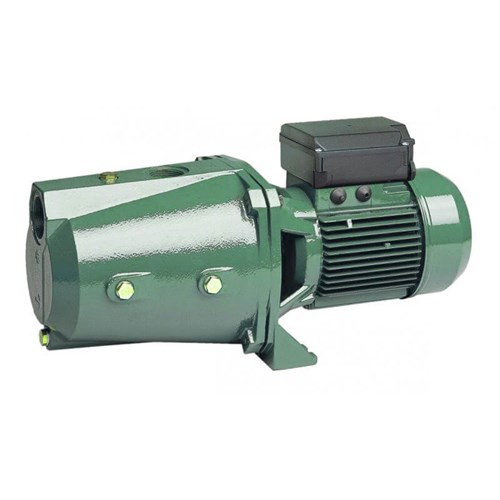

DAB-300M – Pump Surface Mounted Cast Iron 175L/MIN 51M 2.2KW 240V
$2,000.00
DAB-300M – Pump Surface Mounted Cast Iron 175L/MIN 51M 2.2KW 240V
Order Code: 701416
Product Code
DAB-300M
Product Code
DAB-300M
DAB-300M – Pump Surface Mounted Cast Iron 175L/MIN 51M 2.2KW 240V
Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
DAB-300M - Pump Surface Mounted Cast Iron 175L/MIN 51M 2.2KW 240V
Description
Self Priming Single Stage Jet Assisted Cast Iron Jet Pump
Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.
2.2kW, 3.0hp, 240V, max hd 51m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
Warranty
2 Year DAB Pumps Warranty
Handy Hints for Installing Your Jet Pump
- Location: The pump should be located as close to the water source as possible and should be protected from the elements
- Piping: Only use pipe that is in good condition and free of rust or scale
- Types of Pipe: Plastic or galvanised steel can be used with jet pumps
- Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 Drinking Water Approved.
Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.
This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water
Downloads
Certificates & Compliance Information
Operation and Installation Manuals
Spare Parts Information and Exploded Diagrams
Additional information
| Weight | 31.50 kg |
|---|---|
| Brand | DAB Pumps |
| Product Type | Single Stage Jet Pump |
| Suitable For | Tank transfer |
| Bar | 5.1 |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 175 L/min |
| Hp | 3 Hp |
| kPa | 517 kPa |
| Kilo Watts | 2.2 kW |
| Casing Material | Cast Iron |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 51 M |
| Port Size Inlet | 1 1/2" BSPF inlet |
| Port Size Outlet | 1 1/4" BSPF outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 |
| Watts | 2200 W |
