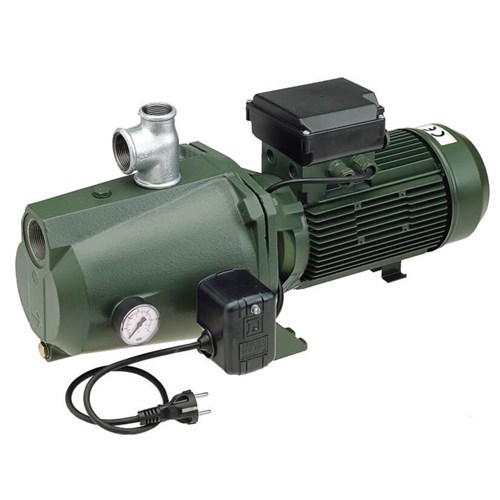

DAB-200MP – Pump Surface Mounted Cast Iron with Pressure Switch 175L/MIN 41M 1.47KW 240V
$2,220.00
DAB-200MP – Pump Surface Mounted Cast Iron with Pressure Switch 175L/MIN 41M 1.47KW 240V
Order Code: 701399
Product Code
DAB-200MP
Description
Pump Surface Mounted Cast Iron with Pressure Switch 175L/MIN 41M 1.47KW 240V
Self Priming Single and Multistage Cast Iron Jet Pressure Systems
1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2″ BSPF In, 1 1/4” BSPF Out
PRESSURE TANKS ARE SOLD SEPARATELY
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
DAB-200MP - Pump Surface Mounted Cast Iron with Pressure Switch 175L/MIN 41M 1.47KW 240V
Self Priming Single and Multistage Cast Iron Jet Pressure Systems
1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out
DAB-200MP - Pump Surface Mounted Cast Iron with Pressure Switch 175L/MIN 41M 1.47KW 240V
Drinking Water Approved
AS/NZS 4020 Drinking Water Approved.
Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.
This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.
Downloads
Spare Parts Information and Exploded Diagrams
Additional information
| Weight | 27.50 kg |
|---|---|
| Product Type | Single Stage Jet Pump |
| Suitable For | Tank transfer |
| Bar | 4.1 |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 175 L/min |
| Hp | 2 hp |
| Kilo Watts | 1.47 kw |
| Casing Material | Cast Iron |
| Head Range Category | b. 40 – 59 m |
| Max Head (m) | 41 m |
| Port Size Inlet | 1 1/2" BSPF inlet |
| Port Size Outlet | 1 1/4" BSPF outlet |
| Powered | Electric |
| Volts | 240 V |
| Warranty (months) | 24 |
| Brand | DAB Pumps |
