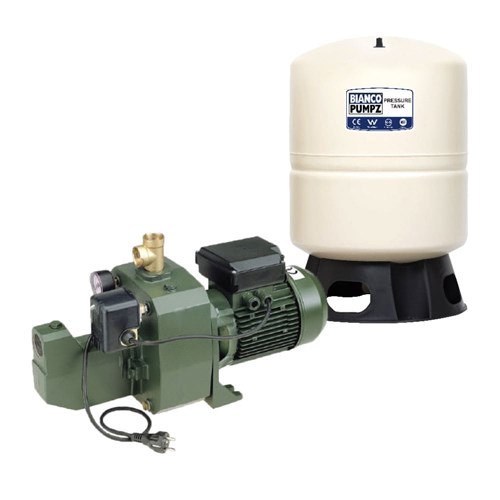

DAB-151MP-50V – PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V + 60L TAN
$2,460.00
DAB-151MP-50V – PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V + 60L TAN
Description
DAB Self Priming Cast Iron Jet Pressure Pumps
Includes a 60L Pressure Tank and Connection Kit
1.1 kW, 1.5 hp, 240V, Automatic with pressure switch, max hd 62m, max flow 120L/m
Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.
Nominal volume: 60L
Nominal Draw-off: 18L
Continuous max. temp 90°C
Continuous max. pressure: 10 Bar (145PSI)
Pre-charge: 4 Bar (58PSI)
Diameter: 390 mm
Height: 592mm
Net Weight: 9.4Kg
System Connection: GI
Colour: Almond
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
DAB-151MP-50V - PUMP SURFACE MOUNTED CAST IRON WITH PRESSURE SWITCH 75L/MIN 61M 1.1KW 240V + 60L TAN
Drinking Water Approved
AS/NZS 4020 drinking water approved
AS/NZS 4020 Drinking Water Approved.
Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.
This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
WaterMark Approved
WATERMARK APPROVAL - WMKA00105 to AS/NZS3499
The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.
The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.
WaterMark Approval Logo
In order to achieve Watermark Certification, the subject material or product must:
be tested by a recognized testing laboratory.
comply with an approved specification (either a relevant existing standard or an approved Watermark Technical Specification);
be manufactured in accordance with an approved Quality Assurance Program; and
carry a warranty.
Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.
Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Downloads
Spare Parts Information and Exploded Diagrams
Additional information
| Weight | 35 kg |
|---|---|
| Brand | DAB Pumps |
| Suitable For | Clean Water |
| Bar | 6.1 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category | 0 – 99 L/min |
| Flow Rate (L/min) | 75 L/min |
| Hp | 1.5 Hp |
| Kilo Watts | 1.1 kW |
| Head Range Category | 60 – 99 m |
| Max Head (m) | 61 m |
| Port Size Inlet | 1 1/4" BSPF inlet |
| Port Size Outlet | 1" BSPF outlet |
| Powered | Electric |
| Taps | 7 Taps |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 1100 W |
