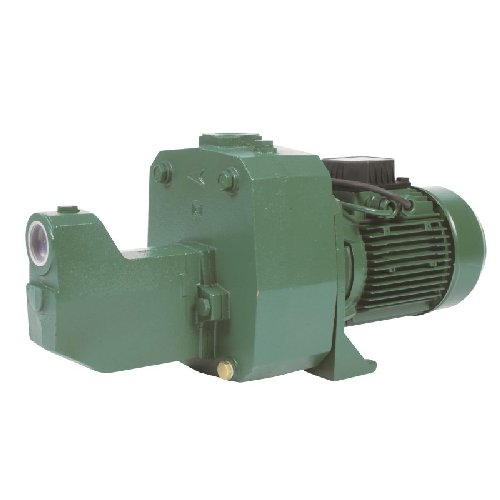

DAB-151M – Pump Surface Mounted Cast Iron 75L/MIN 61M 1.1KW 240V
$1,890.00
DAB-151M – Pump Surface Mounted Cast Iron 75L/MIN 61M 1.1KW 240V
Order Code: 701388
Product Code
DAB-151M
Description
DAB-151M – Pump Surface Mounted Cast Iron 75L/MIN 61M 1.1KW 240V
Self Priming Multistage Jet Assisted Cast Iron Jet Pump
Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.
1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1″ BSPF Out
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
DAB-151M - Pump Surface Mounted Cast Iron 75L/MIN 61M 1.1KW 240V
Suitable for:
Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.
1.1kW, 1.5hp, 240V, max hd 61m, max flow 75L/m Ports 1 1/4” BSPF In, 1" BSPF Out
Warranty
2 Year DAB Pumps Warranty
Handy Hints for Installing Your Jet Pump
- Location: The pump should be located as close to the water source as possible and should be protected from the elements
- Piping: Only use pipe that is in good condition and free of rust or scale
- Types of Pipe: Plastic or galvanised steel can be used with jet pumps
- Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 Drinking Water Approved.
Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.
This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water
Downloads
Product Information and Data Sheets
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals
Certificates & Compliance Information
Additional information
| Weight | 30.80 kg |
|---|---|
| Brand | DAB Pumps |
| Bar | 6.1 |
| Product Type | Multistage Jet Pump |
| Suitable For | Tank transfer |
| Flow Range Category | a. 0 – 99 L/min |
| kPa | 618 kPa |
| Kilo Watts | 1.1 kW |
| Casing Material | Cast Iron |
| Head Range Category | c. 60 – 99 m |
| Port Size Inlet | 1 1/4" BSPF inlet |
| Port Size Outlet | 1" BSPF outlet |
| Powered | Electric |
| Volts | 240 V |
| Watts | 1000 W |
| Hp | 1.5 |
