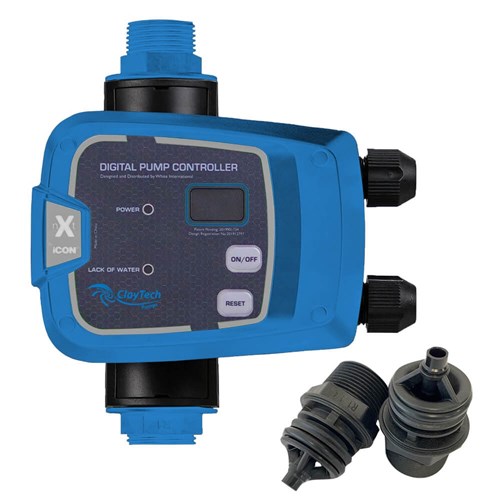

CLA-NXT-BLUE - ClayTech nXt Blue Pump Controller with 25mm Union

Description

1.5kw, 10BAR, 1’bsp outlet with 25mm replacement union kit. Comes with fly lead for hard wiring and male 3 pin plug
The nXt series of pump controls represents the next step in pressurised pump control.

Designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.

Ideal for pumps supplying clean, non-volatile liquids without fibers or solids in applications such as:

• Household water supply
• Irrigation
• Water transfer
• Washing systems
• Pressure boosting

Features

The ClayTech nXt Blue Pump Controller (CLA-NXT-BLUE) is designed for pressurised pump control and offers several advanced features:

• Digital Display: Provides real-time system pressure readings.
• Anti-Cycle Protection: Prevents excessive cycling to extend pump life.
• Dry Run Protection: Automatically restarts and tests for water availability every 24 hours.
• Anti-Seize Function: Activates if the pump hasn’t operated in the last 24 hours.
• Over Pressure Protection: Shuts off the pump when 10 bar is reached.
• Overload Protection: Ensures safe operation by preventing excessive electrical load.
• Easy Installation: Features a push-n-connect fitting with a U clip for quick assembly and removal.
• Drinking Water Approved: Complies with AS/NZS 4020 standards, ensuring safe water quality.
• This controller is ideal for household water supply, irrigation, water transfer, washing systems, and pressure boosting
