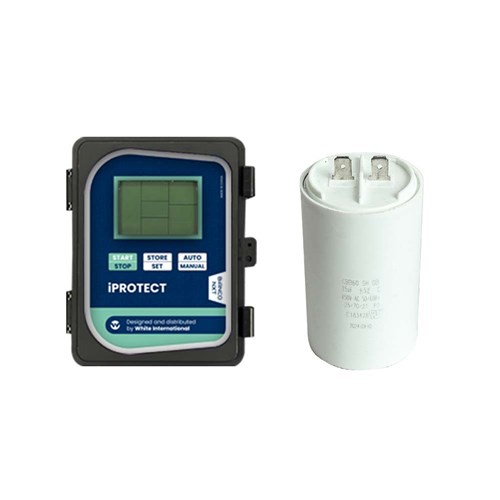

BIA-NXT-PROTECT1-22 - Bianco nXt iPROTECT Controller w/25uF Capacitor Suitable for 0.37kW to 2.2KW

Description

The Bianco nXt iPROTECT Controller (BIA-NXT-PROTECT1-22) is designed to control and protect a single-phase pump. It offers three primary control logic modes:

• Drainage Mode: Focuses control at the source.
• Boosting Mode: Uses pressure switching for regulation.
• Transfer Mode: Balances control between source and destination.

This controller is particularly useful for single-phase “3-wire” PSC bore pump motors, as it includes internal space and a bracket for mounting a start capacitor. It features digital current monitoring, which provides a faster response time compared to traditional analog overload methods.

Additionally, the nXt iPROTECT Controller includes programmable alarm parameters, an anti-seize function for drainage mode, and an error log storing the last five faults. It also has an audible alarm and a flashing screen to indicate alarm states.

Features

The Bianco nXt iPROTECT Controller (BIA-NXT-PROTECT1-22) is designed for single-phase pumps ranging from 0.37kW to 2.2kW.

Key features:

• Advanced Pump Protection: Monitors and safeguards against over voltage, under voltage, dry run, overload, pump stall, open phase, and phase reversal.
• Three Control Modes: Supports Drainage, Boosting, and Transfer applications, allowing flexible pump control.
• Integrated Capacitor Space: Includes an internal bracket for mounting a start capacitor, making it ideal for 3-wire PSC bore pump motors.
• Digital Monitoring: Uses digital current monitoring for superior response time compared to traditional analog overload methods.
• Audible & Visual Alarms: Features a flashing screen and audible alerts to indicate alarm states.
• Anti-Seize Function: Helps prevent pump seizure in drainage mode.
• Error Logging: Stores the last five errors for troubleshooting.
• IP56 Rated Enclosure: Provides high protection against dust and water.

Applications

• Programmable alarm parameters with adjustable trip and recovery time settings in certain cases

• Overvoltage

• Undervoltage

• Dry run (undercurrent)

• Overload (overcurrent)

• Pump stall

• Open phase

• Phase reversal (applicable to 3-phase models only)

• 'Anti-seize' function in drainage mode

• Logs of the last 5 errors

•Xt_Protect features an audible alarm and a flashing screen to signal an alarm state
