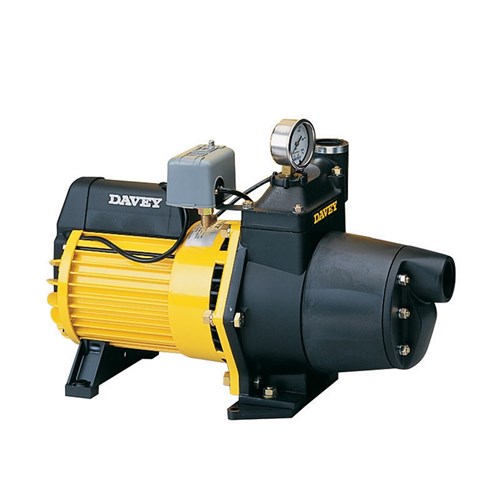

95S Shallow Well Pressure Pump – std injector – 1.1kW 240V 50Hz 1ph incl pressure switch

Name: 95S Shallow Well Pressure Pump - std injector - 1.1kW 240V 50Hz 1ph incl pressure switch - Total Alcott Pumps & Servicing
Brand: Davey
SKU: 095S1

Call for Price

95S Shallow Well Pressure Pump – std injector – 1.1kW 240V 50Hz 1ph incl pressure switch

Product Code: 095S1

Description

Shallow Well Jet Pumps

Rugged single stage jet assisted pump with unique composite casing, fitted with pressure switch
Offers versatility with venturi options available to adjust to required duty
Designed for high ambient temperatures and extremes in supply voltage, they are ideal for remote areas
Suitable for drawing water from depths up to 7.5 metres
Kit includes 95S pump, 22690 injector and suction housing.
Tank & hose kits etc. must be ordered in addition to kits if being used as an automatic pressure system

Add to Wishlist



Shipping – We ship from Sydney to NSW metro and regional

+

Return Policy – Returns and exchanges may incur a shipping fee



Secure Payment – We use PayPal for secure online payments

Description
Reviews (0)

95S Shallow Well Pressure Pump - std injector - 1.1kW 240V 50Hz 1ph incl pressure switch

The Davey 95S Shallow Well Pressure Pump with a standard injector, 1.1kW 240V 50Hz 1ph motor, and pressure switch is a reliable, jet-assisted pump suitable for farm water supply, tank filling, and sprinkler systems. It is available from several online retailers in Australia.

Specifications and Features

The Davey 95S pump is known for its durability and versatility, designed to perform well in high ambient temperatures.
Motor: Davey manufactured 1.1kW (output), 1.6kW (input), 2 pole, 2900rpm, 50Hz, 240V single phase motor with Class F insulation and IP56 rating.
Maximum Flow Rate: 95 Litres Per Minute (LPM) at 260kPa (nil suction).
Maximum Suction Head: Suitable for drawing water from depths up to 7.5 metres.
Construction: Features a marine-grade aluminium pump body with Rilsan lining for corrosion resistance, and a glass-filled polycarbonate impeller.
Additional Components: Includes a pressure switch and pressure gauge, and uses the standard 22690 injector.
Applications: Ideal for farm water supply from dams, creeks, and rivers, as well as stock watering and sprinkler supply.

Datasheet
