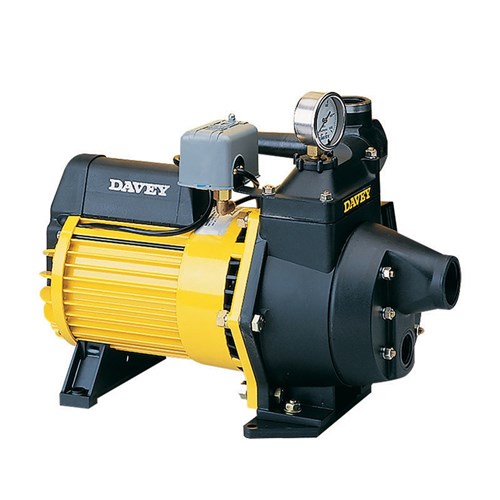

95D Deep Well Pressure Pump + 469 injector & 4" housing - 1.1kW 240V 50Hz 1ph incl pressure switch

The Davey 95D Deep Well Pressure Pump + 469 injector & 4" housing is a specific, single-phase jet pump system designed to supply high-pressure water from bores or wells down to 18 metres in depth. The 469 injector kit (product code 22469) is crucial for its performance and makes it suitable for use in 4-inch minimum diameter bores.

Core Technical Profile

• Motor Power: 1.1kW (Output).
• Electrical: 240V, 50Hz, single-phase supply with inbuilt thermal overload protection.
• Automatic Operation: Includes a factory-fitted pressure switch and gauge for easy conversion to an automatic pressure system.
• Components: This package comes as a complete kit including the pump head, the 469 injector, and the 4" housing.
  Performance Capabilities with 469 Injector
• This configuration is optimized for depths down to 18 metres, offering specific flow rates and pressures depending on the installation depth:
• Maximum Depth: Suitable for suction lifts up to 18 metres.
• Max Flow Rate: Can deliver up to 85 Litres per Minute (LPM) in optimal conditions.

Robust Construction and Features

• Corrosion Resistance: Features a marine-grade aluminium pump body with an internal Rilsan® lining for excellent protection against aggressive water.
• Motor Protection: The TEFC motor has an IP56 rating for long-term protection against dust, vermin, and water ingress.
• Reliable Design: An Automatic Demand Response (ADR) valve is fitted as standard to protect against loss of prime from over-pumping.
