165D Deep Well Pressure Pump + 573 injector & 5" housing - 1.4kW 415V 50Hz 3ph incl pressure switch

Description

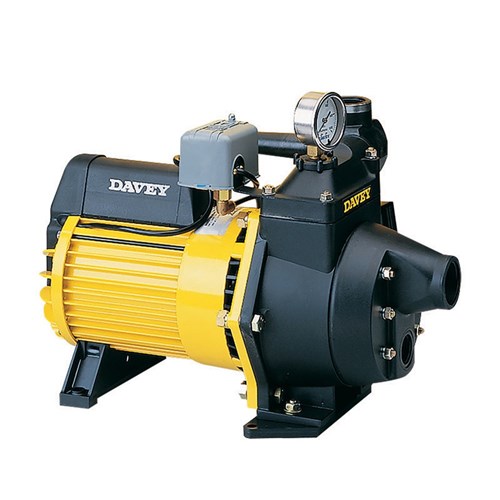

The Davey 165D Deep Well Pressure Pump + 573 injector & 5" housing (three-phase model) is a rugged, high-performance jet-assisted pump system designed for drawing high-pressure water from the deepest bores in the Davey range for this model, specifically those with a minimum 5-inch casing. It is ideally suited for domestic, stock watering, or garden irrigation needs from significant depths. This system is rated to reach depths down to 42 metres.

Key Features

This system combines a powerful 415V three-phase pump head with a 573 injector and 5-inch housing to effectively draw water from significant depths.

• Rugged Construction: The pump body is made from marine-grade aluminium with a Rilsan® lining, providing high tensile strength and outstanding resistance to aggressive water and corrosion.
• Maximum Deep Well Performance: Utilises an injector (nozzle and venturi assembly) specifically designed for 5-inch bores to effectively draw water from the maximum depth possible for this pump, down to 42 metres with the 573 injector.
• Three-Phase Power: Equipped with a robust 1.8kW (technical data) 415V, 3-phase motor, suitable for demanding, continuous duty applications, common in agricultural or industrial settings.
• Automatic Operation: It is fitted with a pressure switch and pressure gauge as standard, allowing for easy conversion to automatic, hands-free operation for household or irrigation systems.
• Loss of Prime Protection: An Automatic Demand Response (ADR) valve is included to protect against the loss of prime from over-pumping, enhancing reliability and pump longevity.
• Versatile Installation: The pumping system can be used for "offset" installations where the pump needs to be located horizontally away from the water source.
• Optimised Flow Rate for Depth: Offers a maximum flow rate of up to 37 litres per minute when used with the 573 injector, a flow rate optimised for pumping from maximum depths.

Applications

• Water supply for general domestic use (with appropriate plumbing and potentially a pressure tank).
• Tank filling from a deep bore or well source.
• Stock watering in agricultural settings.
• Large-scale sprinkler systems and garden/agricultural irrigation.
