165D Deep Well Pressure Pump + 572 injector & 5" housing - 1.4kW 415V 50Hz 3ph incl pressure switch

Description

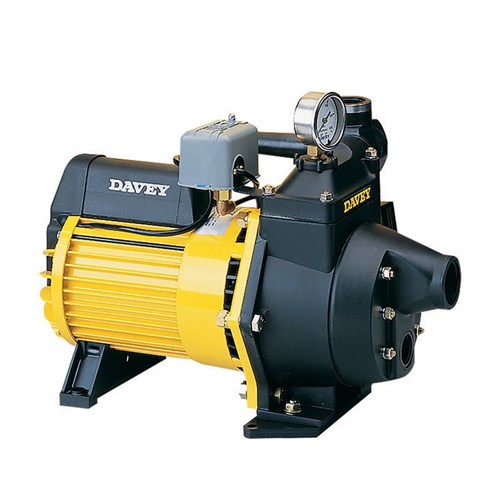

The Davey 165D Deep Well Pressure Pump + 572 injector & 5" housing is a rugged, three-phase jet-assisted pump system designed for drawing high-pressure water from deep bores with a minimum 5-inch casing, ideal for domestic, stock watering, or garden irrigation needs from significant depths. This system is rated to reach depths down to 33 metres.

Key Features

This system combines a powerful 415V three-phase pump head with a 572 injector and 5-inch housing to effectively draw water from significant depths.

• Rugged Construction: The pump body is made from marine-grade aluminium with a Rilsan® lining, providing high tensile strength and outstanding resistance to aggressive water and corrosion.
• Deep Well Performance: Utilises an injector (nozzle and venturi assembly) specifically designed for 5-inch bores to effectively draw water from depths down to 33 metres with the 572 injector.
• Three-Phase Power: Equipped with a robust 1.8kW (technical data) 415V, 3-phase motor, suitable for demanding, continuous duty applications, common in agricultural or industrial settings.
• Automatic Operation: It is fitted with a pressure switch and pressure gauge as standard, allowing for easy conversion to automatic, hands-free operation for household or irrigation systems.
• Loss of Prime Protection: An Automatic Demand Response (ADR) valve is included to protect against the loss of prime from over-pumping, enhancing reliability and pump longevity.
• Versatile Installation: The pumping system can be used for "offset" installations where the pump needs to be located horizontally away from the water source.
• Optimal Flow Rate: Offers a maximum flow rate of up to 64 litres per minute when used with the 572 injector.

Applications

• Water supply for general domestic use (with appropriate plumbing and potentially a pressure tank).
• Tank filling from a deep bore or well source.
• Stock watering in agricultural settings.
• Large-scale sprinkler systems and garden/agricultural irrigation.

Downloads

Data Sheet
