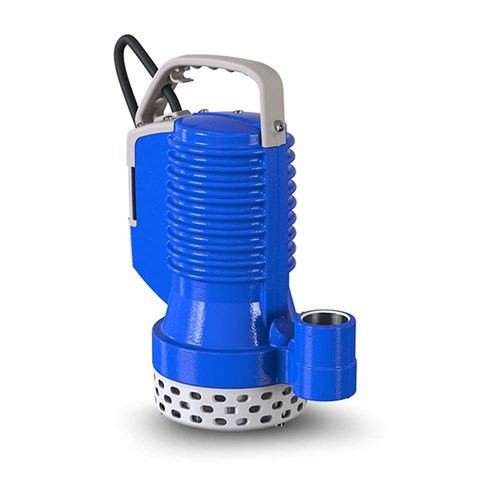

ZEN-DRBLUE50/2/G32VMEX

Pump Submersible IECEX Slightly Dirty Water Domestic 240L/M 9.5M

Description

ZENIT DR Blue Series - Open multi-vane fully sumberged impeller
Ideal for use with clear or slightly soiled wastewaters containing small solids, strained water, rainwater, seepage and water pumped from underground. Suitable and reliable for domestic use, including heavyduty applications.

0.37kW, 0.5hp, 240V without float switch, max hd 9.5m, max flow 240L/m, 1 1/4” BSPF outlet. Particle size 7mm.

Warranty

2 Year Zenit Warranty

Downloads

Product Information and Data Sheets

Product Information and Data Sheets

Spare Parts Information and Exploded Diagrams

Spare Parts Information and Exploded Diagrams

Operation and Installation Manuals

Operation and Installation Manuals v1.01

Operation and Installation Manuals v1.0

Operation and Installation Manuals v 1.02

Certificates & Compliance Information

Certificates & Compliance Information v1.0

Certificates & Compliance Information v1.01

ZEN-DRBLUE50/2/G32VMEX - Pump Submersible IECEX Slightly Dirty Water Domestic 240L/M 9.5M

IECEx Zone 2 Approved

IECex International Certification
IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.

As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?

You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

• car parks
• truck stops
• vehicle workshops
• bus depots
• and garages
