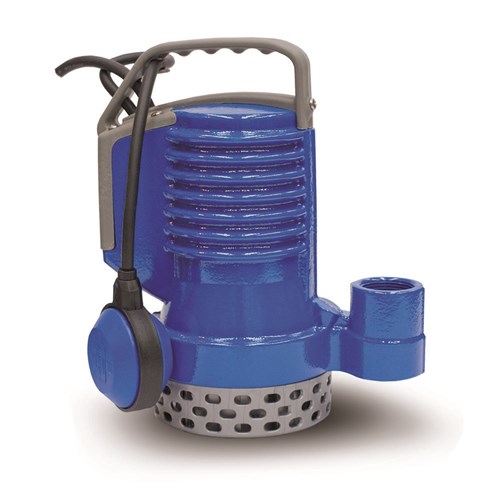

ZEN-DRBLUE100/2/G32VMGEX - Pump Submersible IECEX Dirty Water Domestic 300L/M 14

Features

The ZEN-DRBLUE100/2/G32VMGEX is a submersible drainage pump designed for domestic use, particularly for slightly dirty water applications.

key features:

• Flow Rate: 330 L/min
• Max Head: 14 m
• Power: 0.75 kW (1 HP)
• Voltage: 240V
• Outlet Size: 1 1/4" BSPF
• Particle Size Capacity: 7 mm
• Approval: IECEx Zone 2 certified (for use in explosive atmospheres)

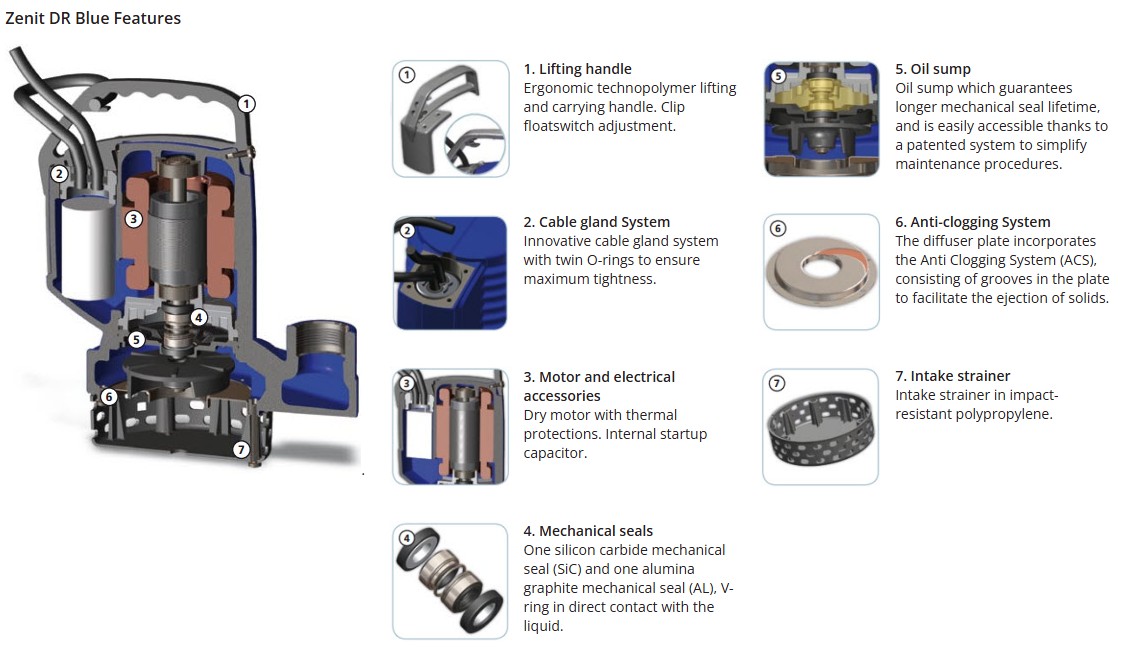

• Construction: Includes a multi-vane fully submerged impeller, dual mechanical seals (silicon carbide and graphite alumina), and an oil sump for extended seal life
• Anti-Clogging System: Designed to facilitate the ejection of solids
• Ergonomic Handle: For easy lifting and carrying
• Cable Gland System: Ensures maximum tightness with twin O-rings
• This pump is ideal for handling clear or slightly soiled wastewater, including rainwater, seepage, and underground water. It’s also suitable for heavy-duty domestic applications like stormwater drainage and vehicle workshop dewatering

Warranty: 2 years

This pump is ideal for handling strained water, rainwater, seepage, and underground water, making it reliable for domestic and heavy-duty applications.

Downloads

Zenit Pumps - Blue Series Manual Operation and Installation Manuals

Certificates & Compliance Information

Operation and Installation Manuals

Spare Parts Information and Exploded Diagrams

Product Information and Data Sheets

IECEx Zone 2 Approved

IECEx International Certification
IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.

As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?

You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

• car parks
• truck stops
• vehicle workshops
• bus depots
• and garages
