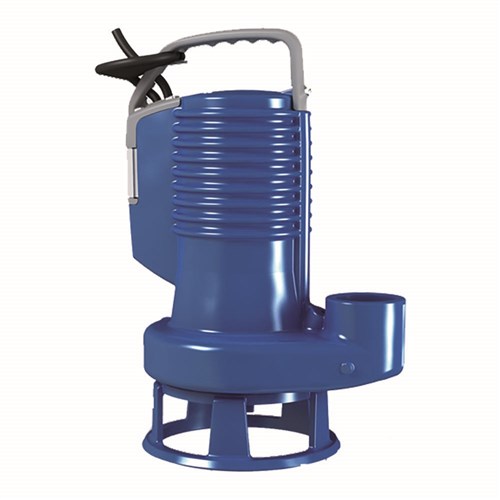

ZEN-DGBLUEP200/2/G50VMGEX - Pump Submersible IECEX Dirty Water Industrial 690L/M 15.3M 1.5

Features

The Zenit DG Blue Professional Series P200 submersible pump is built for heavy-duty applications, handling soiled biological wastewater, sewage, rainwater, and seepage efficiently.

Key Features:

Power & Performance: Operates at 1.5kW (2hp), delivering a maximum head of 15.3m and a flow rate of 690L/min.

Outlet & Solid Handling: Equipped with a 2" BSPF outlet, capable of passing solids up to 50mm, reducing clogging risks.

Hazardous Environment Compliance: IECEx Zone 2 certified, making it suitable for hazardous locations requiring explosion-proof equipment.

Durability & Protection: Constructed from robust cast iron, with dual silicon carbide mechanical seals for superior wear resistance and leak prevention.

Electrical & Installation Requirements: Runs on 240V single-phase power, with an IECEx float switch for added safety

Downloads

Zenit Pumps - Blue Series Manual Operation and Installation Manuals

Certificates & Compliance Information

Operation and Installation Manuals

Spare Parts Information and Exploded Diagrams

 Product Information and Data Sheets

Applications

Households
Strata corporations
water treatment plants
Car parks
Truck stops
Vehicle Workshops
Bus depots
Garages

Electromechanical assembly

Electromechanical assembly in EN-GJL-250 cast iron, for submerged operation, fitted with 2 (two) opposing silicon carbide mechanical seals in oil sump, and V-ring in direct contact with the liquid. Ecological dry motor. Pump body in single casting with motor casing.

Construction materials

Case Cast iron EN-GJL 250
Impeller Cast iron EN-GJL-250
Nuts and bolts Stainless steel - Class A2-70
Standard gasket Rubber - NBR
Shaft Stainless steel - AISI 420
Paint type Ecological bicomponent epoxy (medium thickness 80 µm)
Set of standard mechanical seals Two silicon carbide mechanical seals (2SiC), V-ring

IECEx Zone 2 Approved
IECex International Certification
IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

• car parks
• truck stops
• vehicle workshops
• bus depots
• and garages
