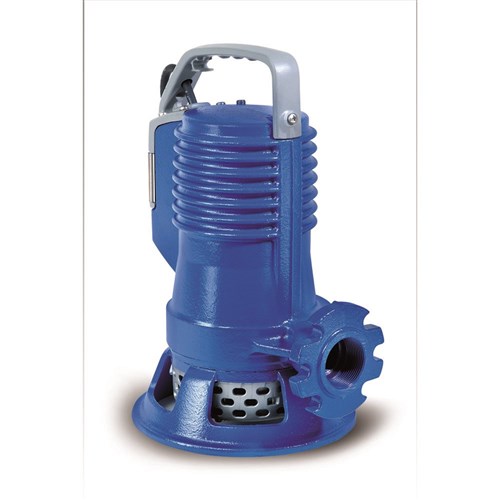

ZEN-APBLUEP100/2/G40HTEX - Pump Sub ECEX Slightly Dirty Water High Head 360L/M 17.3M 0.75

Description

ZENIT AP Blue Professional Series
Used for clear wastewater, rainwater and seepage containing small amounts of sand. Its high manometric head makes this series suitable for the creation of water features and decorative fountains.

The electric pump is intended for both domestic and professional use.

0.75kW, 1.0hp, 240V with IECEx float switch, max hd 17.3m, max flow 360L/m, 1 1/2" BSPF outlet. Particle size 6mm.

3 phase pumps require contactor and overload.

Features

The ZEN-APBLUEP100/2/G40HMEX is a IECEx Approved Submersible Pump designed for slightly dirty water applications with a high head performance.

Key Features

• Max Flow Rate: 360 L/min, ensuring efficient water transfer.
• Max Head: 17.3m, providing strong lifting capability.
• Power: 0.7kW, delivering reliable operation.
• Voltage: 240V, suitable for domestic and professional use.
• Impeller Type: Cast iron multi-channel open impeller, allowing free passage of solids up to 6mm.
• Mechanical Seals: Dual silicon carbide mechanical seals enclosed in an oil chamber for extended durability.
• Corrosion Resistance: Motor shaft in stainless steel AISI 304, with external cataphoresis and two-component coating for longevity.
• Compliance: IECEx Zone 2 Approved for use in explosive atmospheres.
• Application: Suitable for clear wastewater, rainwater, seepage water with small amounts of sand, and decorative fountains.

Warranty

2 Year Zenit Warranty

Downloads

 Product Information and Data Sheets

Spare Parts Information and Exploded Diagrams

Operation and Installation Manuals

Certificates & Compliance Information

Operation and Installation Manuals

IECEx Zone 2 Approved

IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.

As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?

You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.

These include:

• car parks
• truck stops
• vehicle workshops
• bus depots
• and garages
