DAB-GRINDER15.11MEX - Grinder IECex Approved Submersible Pump 320L/m 24.9M 1.1kW 240V

Description

The DAB-GRINDER15.11MEX is a Grinder IECEx Approved Submersible Pump designed for sewage water transfer at high pressure or when narrow piping is required to reduce installation costs. Here’s a breakdown of its key specifications:

• Max Flow Rate: 320 L/min, ensuring efficient wastewater management.
• Max Head: 24.9m, providing strong lifting capability.
• Power: 1.1kW, delivering reliable operation.
• Voltage: 240V, suitable for industrial and commercial use.
• Grinder System: High-resistance stainless steel grinder, allowing effective solid waste breakdown.
• Mechanical Seals: Double silicon carbide seals enclosed in an oil chamber to prevent direct contact with pumped liquid.
• Corrosion Resistance: Motor shaft in stainless steel AISI 304, with external cataphoresis and two-component coating for durability.
• Compliance: Meets EN 12050 wastewater standards.
• Pump Body & Impeller: Made of cast iron, with a shredder in AISI 630.
• Threaded & Flanged Outlet: Ensures secure connections.

Warranty:

2-year parts and labor warranty.

This pump is ideal for sewage water transfer, wastewater management, and drainage applications.

Features

• High resistance stainless steel grinder system
• Suitable for the transfer of sewage water at high pressure or when narrow piping is needed
• to keep down system installation costs
• Single-phase versions with starter and capacitor in a separate panel
• Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid
• direct contact with the pumped liquid.
• Motor shaft in anticorrosion stainless steel AISI 304
• External cataphoresis and two component coating for corrosion resistance
• Resin sealed cable gland
• Compliant with wastewater standards EN 12050
• Pump body and impeller in cast iron, shredder in AISI 630
• Threaded and flanged outlet

Downloads

Product information & Data sheet

Product information & Data sheet

Product information & Data sheet

Insulation manuals

You may also need these:

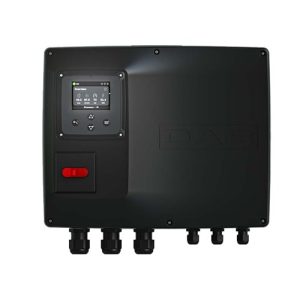

DAB NG Panel Pump Control Unit
