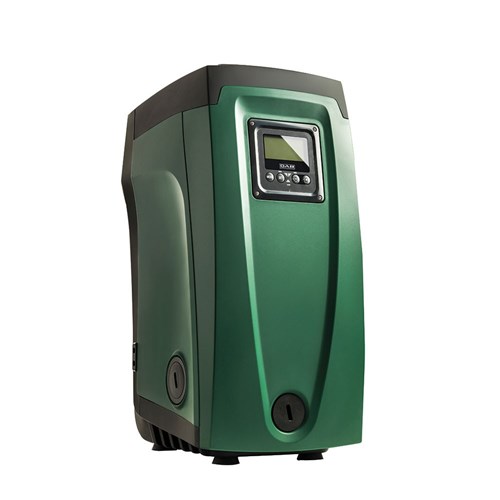

DAB-ESYBOX – Pump Variable Speed Pressure System 120L/MIN 61M 1.4KW 240V
DAB-ESYBOX – Pump Variable Speed Pressure System 120L/MIN 61M 1.4KW 240V
Order Code: 800621
Product Code
DAB-ESYBOX
EsyBox is an integrated system for water pressure boosting in domestic and residential applications.Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.
Product Code
DAB-ESYBOX
EsyBox is an integrated system for water pressure boosting in domestic and residential applications.Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.
Request a Quote
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
DAB-ESYBOX - Pump Variable Speed Pressure System 120L/MIN 61M 1.4KW 240V
Self Priming Variable Frequency Drive Pump
1.55kW, 2.1hp, 240V, Max Head 61m, Max Flow 120L/m, 12 taps. Ports 1" BSPF In, 1" BSPF Out
EsyBox is an integrated system for water pressure boosting in domestic and residential applications.Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.
Special Features:
- Energy efficient
- It can be installed in vertical or horizontal position, in a ventilated room or in a recess
- Quiet operation - 45 dB in standard use
- Saves 30% of space in comparison with a traditional system
- Easy maintenance
- Wireless device to facilitate the creation of pressure booster sets and for connection to other devices
2 Year DAB Pumps Warranty
Additional information
| Weight | 27 kg |
|---|---|
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 6.1 |
| Approval | Drinking Water Approval |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 120 |
| Hp | 2.1 Hp |
| kPa | 618 kPa |
| Kilo Watts | 1.55 kW |
| Head Range Category | c. 60 – 99 m |
| Max Head (m) | 61 m |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPF outlet |
| Powered | Electric |
| Taps | 12 |
| Warranty (months) | 24 |
| Volts | 240 V |
| Watts | 1550 W |
