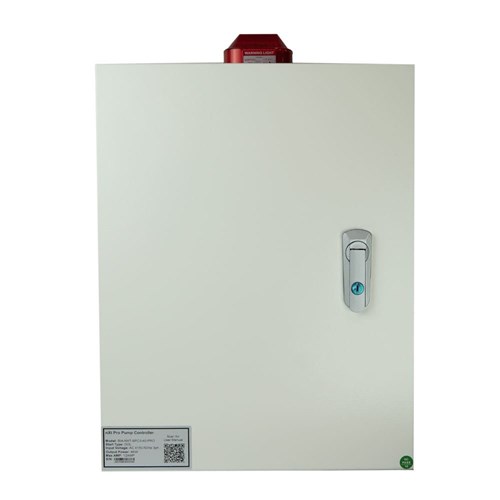

BIA-NXT-SPC3-40-PRO - Dual Door Single Pump Control Panel 415V 0.75 - 4.0kW - Inc Ext Isolator

Description

The BiANCO NXT-SPC PRO (Single Pump Controller) is a module intended to control and protect an individual three phase pump up to a nominal 4.0 kW The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.

There are 3 primary control logic modes
‘Drainage’ where control is concentrated at the source
‘Boosting’, which references pressure switching for control
‘Transfer,’ which is a mix of source and destination control
NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS By digitally monitoring the running current, the response time of the BiANCO NXT SPC PRO is superior to traditional analogue overload methods. Galvanised Powder Coated.

nXt Intelligent Controllers

Bianco iCON Dual Door Single Pump Control Panel 415V 0.75 – 4.0Kw

Features

The Bianco nXt range of intelligent controllers are:

• Suitable for installation in various industrial and domestic applications
• Function Switches for drainage, pressure boosting and transfer applications
• User Friendly features for controlling and protecting pumps and reporting faults with live data retention
• RS485 communication interface for easy integration into Building Management Systems
• Ingress protection rating IP54 with intelligent dynamic LCD display for pump running information that is suitable for installation both indoors and outdoors
• Automatic Calibration of iCON intelligent controller which sets pump thermal overload by means of button push
• Dual enclosure with a lockable external door for added security
• Turnkey Isolator on inner door
• Audio/Visual Alarm
• MCB inside housing
• Terminal wiring block
• IOT Connection
• Galvanised powder coated
