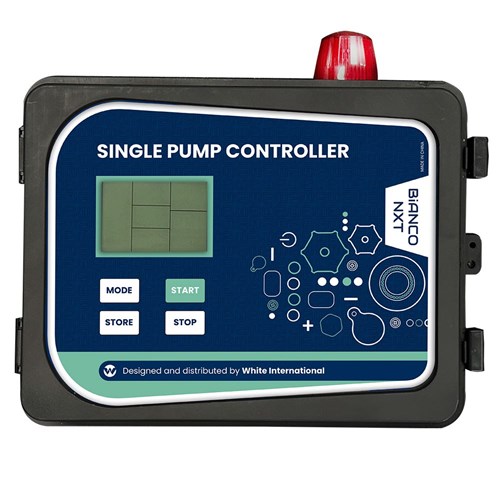

BIA-NXT-SPC3-40 - nXt Single Pump Control Panel - 415V 0.75 - 4.0kW

PRODUCT DETAILS

The BiANCO NXT-SPC (Single Pump Controller) is a module intended to control and protect an individual single phase pump
up to a nominal 4,0 kW. The user can select a control logic sequence to match their application and enjoy the benefits of
superior control and protection for the pump.

There are 3 primary control logic modes
• ‘Drainage’ where control is concentrated at the source
• ‘Boosting’ which references pressure switching for control
• ‘Transfer’ which is a mix of source and destination control

NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS.

By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload
methods.

PROTECTION FUNCTIONS

Protection functions can be set, enabled or disabled independently
• Over voltage
• Under voltage
• Dry Run (under current)
• Overload (over current)
• Pump stall
• Open phase protection
• Phase reversal (3 phase models only) Phase inbalance: input / output (3 phase models only)
• Pump ‘Anti-seize’ function (96 hr default)
• Last 5 error log
• Manual or Automatic operation
• NXT-SPC has an audible alarm and a flashing light to indicate an alarm state. It supports an external alarm unit
• Pump accumulated running time memory
• Pump start / stop delay time setting

CONTROL INPUTS

• Switched input - float switch, pressure switch, temperature switching or relay input
• Level probe (capacitance type probes)
OR
• 4-20mA level or pressure transmitter

nXt Intelligent Controllers

The Bianco nXt range of intelligent controllers are:

• Suitable for installation in various industrial and domestic applications
• Function Switches for drainage, pressure boosting and transfer applications
• User Friendly features for controlling and protecting pumps and reporting faults with live data retention
• RS485 communication interface for easy integration into Building Management Systems
• Ingress protection rating IP54 with intelligent dynamic LCD display for pump running information that is suitable for installation both indoors and outdoors
• Automatic Calibration of iCON intelligent controller which sets pump thermal overload by means of button push
• Optional enclosure with an external door available
