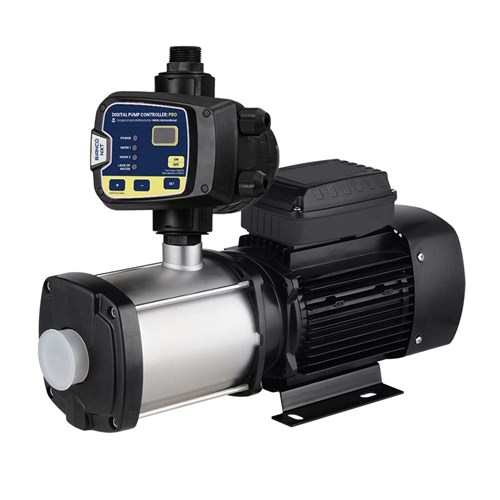

BIA-MULTI56NXTP – Horizontal Multi Stage Pump with nXt PRO Pump Controller 60m 1.3kW 240V
$924.00
BIA-MULTI56NXTP – Horizontal Multi Stage Pump with nXt PRO Pump Controller 60m 1.3kW 240V
Order Code: 808401
BIA-MULTI56NXTP – Horizontal Multi Stage Pump with nXt PRO Pump Controller 60m 1.3kW 240V
Bianco Stainless Steel Horizontal Multi Stage Pump with nXt PRO Intelligent 2 mode controller
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
1.3kW, 1.75hp, 240V, max hd 60m max flow 108L/m, 10 taps
Ports 1-1/4″ BSPF In, 1″ BSPM Out
2 Year Bianco Pumps Warranty
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
BIA-MULTI56NXTP - Horizontal Multi Stage Pump with nXt PRO Pump Controller 60m 1.3kW 240V
Drinking Water Approved
AS/NZS 4020 Drinking Water Approved
Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.
This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water.
WaterMark Approved
WATERMARK APPROVAL - WMKA00105 to AS/NZS3499
The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.
The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.
WaterMark Approval Logo
In order to achieve Watermark Certification, the subject material or product must:
be tested by a recognized testing laboratory.
comply with an approved specification (either a relevant existing standard or an approved Watermark Technical Specification);
be manufactured in accordance with an approved Quality Assurance Program; and carry a warranty.
Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.
Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.
Controller
This pump includes the Bianco iCON nXt PRO series of pump controller.
The nXt PRO Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Controller Modes
Two operational modes:
- Mode One - Adjustable cut in pressure setting.
- Controller stops pump when flow drops.
- Mode Two - Adjustable cut in and cut out pressure.
- Shut down governed by pressure. Requires pressure tank.
Downloads
Certificates & Compliance Information
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals
Bianco Pumps Sydney - Total Alcott Pumps
Additional information
| Brand | Bianco Pumps |
|---|---|
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 5.9 |
| Approval | Drinking Water Approval |
| Amps | 8.6 |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 108 |
| Float | No |
| Hp | 1.75 |
| kPa | 587 |
| Kilo Watts | 1.3 |
| Max Flow (L/min) | 108 |
| Head Range Category | c. 60 – 99 m |
| Max Head (m) | 60 m |
| Port Size Inlet | 1 1/4" BSPF inlet |
| Port Size Outlet | 1 1/4" BSPM outlet |
| Powered | Electric |
| Taps | 10 |
| Volts | 240 V |
| Warranty (months) | 24 |
| Watts | 1300 |
