BIA-C3280-180 – BIANCO Hot Water Circulator
$870.90
BIA-C3280-180 – BIANCO Hot Water Circulator
Order Code: 805645
Product Code
BIA C3280-180
This pump is designed for domestic hot water circulation, featuring stainless steel housing that makes it ideal for underfloor heating. It is maintenance-free, with low noise, and includes 2″ F x 1-1/4″ F unions.
Shipping – We ship from Sydney to NSW metro and regional
Return Policy – Returns and exchanges may incur a shipping fee
Secure Payment – We use PayPal for secure online payments
BIA-C3280-180 - BIANCO Hot Water Circulator
Description
This is a pump used for domestic hot water circulating. The Stainless steel housing makes it suitable for underfloor heating. It is maintenance free and is low in noise. Comes complete with 2" F x 1-1/4" F unions.
Features
The pump is characterised by:
- Circulation body materials suitable for potable water

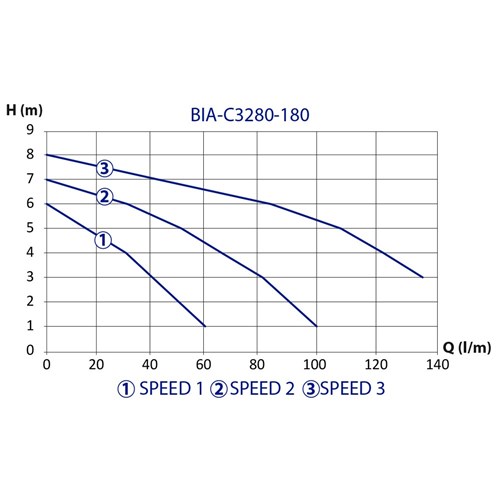

- 3 speed operation
- Flows to 134 l/min
- Heads to 8m
Liquid temperature: 2OC - 110OC
Materials: Pump body: Stainless Steel 304 SS
Impeller: Corrosion resistant composite PPO
Back Plate and Rotor Can: Stainless Steel 304 SS
Unions: 2" F x 1-1/4"F Unions Stainless Steel 304 SS
Installation: Maximum ambient temperature: 40OC
Maximum Operating Pressure: 10 bar
Port spacing: 180mm
Port size: 2” BSPM (1-1/4” BSPF if used with supplied unions)
Electrical Data: 230V
Mains Frequency: 50Hz
Power consumption speeds: 1,2,3
135W 190W 245W
Motor: Continuous
Motor type: Canned rotor
Ingress Protection: IP44
Power cable: 1m
Downloads
Product Information and Data Sheets
Operation and Installation Manuals
Certificates & Compliance Information
Total Alcott Pumps & Servicing - Sydney - Wollongong - NSW
Additional information
| Weight | 6 kg |
|---|---|
| Brand | Bianco Pumpz |
| Product Type | Circulator Pump |
| Suitable For | Solar Hot Water |
| Flow Range Category | b. 100 – 199 L/min |
| Flow Rate (L/min) | 134 |
| Head Range Category | a. 0 – 39 m |
| Max Head (m) | 8 m |
| Port Size Outlet | 2" BSPM outlet |
| Warranty (months) | 24 Months |
| Volts | 240 V |
